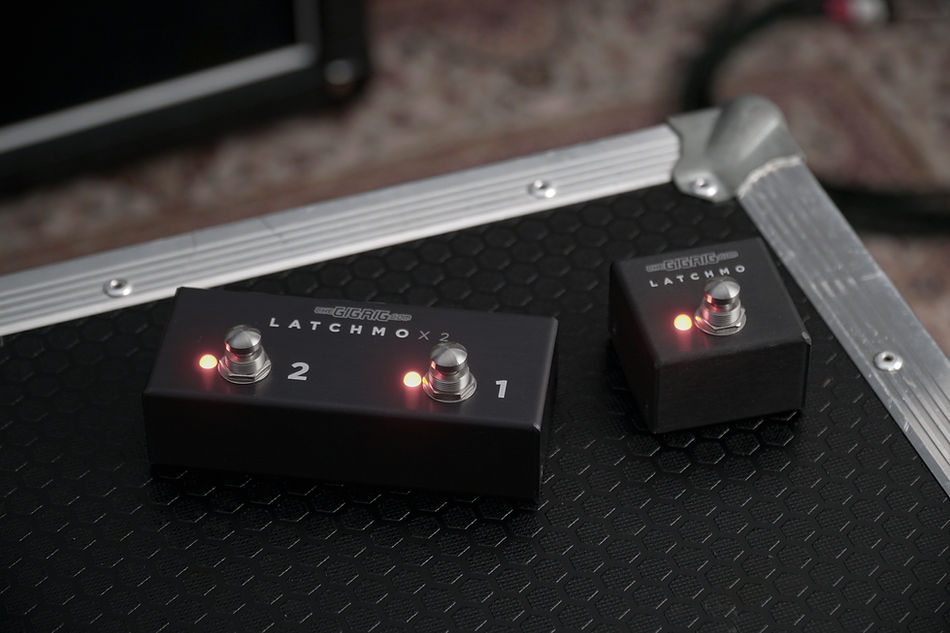

Latchmo both further away.jpg

LATCHMO & LATCHMO 2

The GigRig Latchmo & Latchmo 2 - A powerful and versatile clever switch


Take total control of your rig with the GigRig Latchmo x2, a premium dual footswitch that offers both latching and momentary modes for ultimate flexibility. Whether you're running GigRig gear or other compatible systems, the Latchmo x2 is your go-to remote switch for streamlined, stage-ready performance.


WHY LATCHMO/ LATCHMO 2?

Use it to effortlessly toggle between Heel and Toe settings on the GigRig More or Less, or seamlessly switch the Wetter Box between On/Off—all without missing a beat.

Wherever you need reliable, responsive latching control, the Latchmo x2 delivers. It's everything a pro-level footswitch should be: smart, sturdy, and ready for anything.

Offering flexible operation with options for latching or momentary use and allows switching of ring and/or tip with selectable polarity.

KEY FEATURES

- The LATCHMO footswitch can be set up for either Latching or Momentary operation

- Switch the Ring and/or Tip, with either polarity (normally open/normally closed)


-Rugged milled stainless steel GigRig OPTOKICK footswitch using optical relay control



TECHNICAL

Input Voltage: 9VDC Centre Negative

Current Draw:

LATCHMO - 30mA

LATCHMO x 2 - 60mA

Input is reverse diode protected

Low voltage device

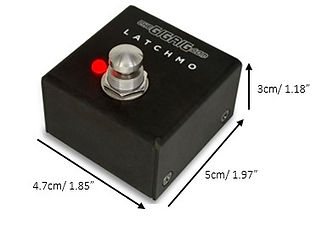

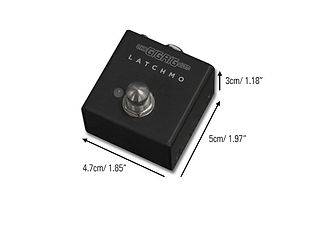

Dimensions: LATCHMO

Length: 4.7cm / 1.85"

Width: 5cm/ 1.97"

Height: 3cm/ 1.18"

Weight: 0.09kg/ 0.2lb

MANUAL
DOWNLOAD
MANUAL

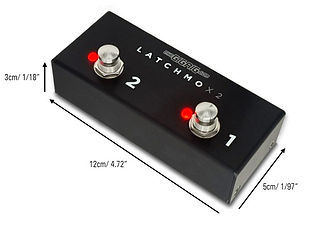

Dimensions: LATCHMO X 2

Length: 12cm / 4.72"

Width: 5cm/ 1.97"

Height: 3cm/ 1.18"

Weight: 0.15kg/ 0.33lb

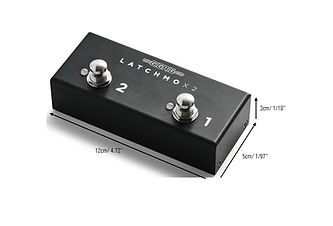

Latchmo x 2 .jpg

FAQs

LATCHMO

Is Latchmo Momentary or Latching?


Latchmo can be set to do either! Simply select when powering up the unit what mode you want it in!
As the unit is flashing powering up, click the footswitch for each mode. Red is latching, Blue is Momentary.

Is Latchmo Normally Open or Normally Closed?


LATCHMO is set by default to switch the TIP to SLEEVE in Normally Open operation. This configuration suits
most remote switching needs and works with both TRS and standard MONO ¼” cables. However, you can
change the switching from Tip to Ring and adjust the polarity to Normally Closed. Check the manual for the dip switch configurations.

How do I power a Latchmo?


Latchmo requires 30mA at 9v Center Negative power supply.





LATCHMO X 2

Is Latchmo Momentary or Latching?


Latchmo can be set to do either! Simply select when powering up the unit what mode you want it in!
As the unit is flashing powering up, click the footswitch for each mode. Red is latching, Blue is Momentary.
Each footswitch on Latchmo x2 can be set to operate differently. You could have one footswitch in latching and one in momentary.


To use each footswitch independently, turn all the LINK DIP switches to the OFF position. Consult the Manual for specifics!

Is Latchmo Normally Open or Normally Closed?


LATCHMO is set by default to switch the TIP to SLEEVE in Normally Open operation. This configuration suits
most remote switching needs and works with both TRS and standard MONO ¼” cables. However, you can
change the switching from Tip to Ring and adjust the polarity to Normally Closed. Check the manual for the dip switch configurations.


You can set this for side of Latchmo x 2

How do I power a Latchmo?


Latchmo requires 60mA at 9v Center Negative power supply.
