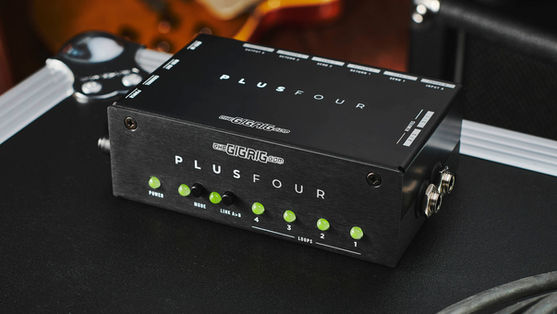

WHY PLUS4?
Sometimes you simply need more loops.
Whether your switching system is already full, or you just want to add more pedals to your rig, PLUS4 gives you a simple and completely transparent way to add, and remotely switch up to four additional effects loops.
Designed to integrate seamlessly with G3S and G3S Atom, PLUS4 expands your switching system while keeping your signal path completely pristine.
With two independent signal paths, PLUS4 can be configured as four mono effects loops in series or two stereo loops, giving you the flexibility to switch anything from classic stompboxes to modern stereo pedals. And because the loops are fully passive and relay switched with ZERO filtering, you can confidently use it with any pedal, including impedance-sensitive designs like germanium fuzzes and vintage treble boosters right up to modern day instrument and line level effects.
TECHNICAL
-

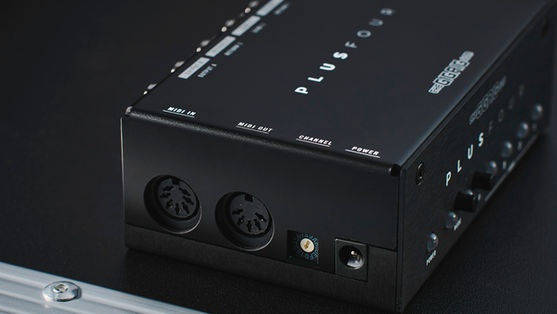

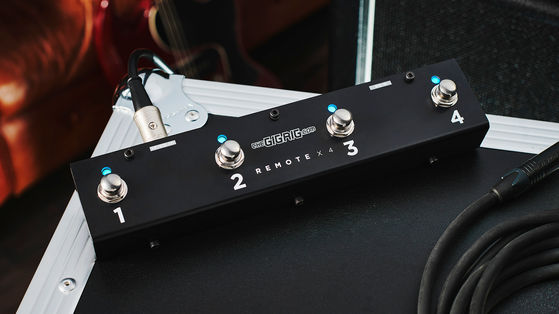

TRS, MIDI or RemoteX4 External Footswitch switchable
-

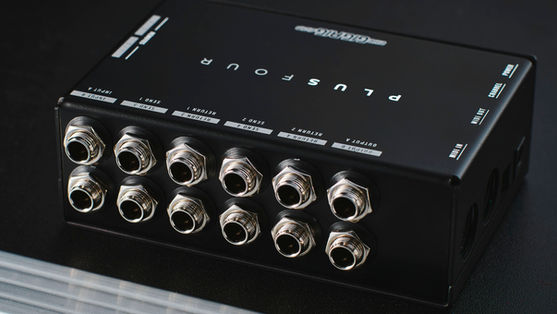

4 x Mono or 2 x Stereo operation
-
Relay based bypass with zero filtering
-
Integrated programable Pop Gate
MANUAL
KEY FEATURES
Power: 9V DC 2.1mm centre negative, minimum 200mA regulated
Current draw: All outputs on, all LED's on = appx. 100mA
Dimensions:
Length: 12.5cm / 4.92"
Width: 9cm / 3.54"
Height: 4.1cm / 1.61"
Weight: 0.34kg / 0.74Ib
FAQs
How do I power the PLUS4?
PLUS4 is powered using a standard BOSS style 2.1mm 9V Centre Neg power supply capable of slivering at least 200mA
Is the PLUS4 mono or stereo?
It can be either 4 MONO loops 2 Stereo loops depending on how you have it configured.
How do I control the PLUS4?
You can control PLUS4 using the Remote Switches, (2 independent sets of TRS Remote Switch Inputs to control Loops 1~4, or in STEREO Mode, Remote Switch 1 will switch the patella pairs, 1&3 as well as 2&4)
Can I re-order the loops on the PLUS4?
No, the loops are in a set order in series
How do I add the PLUS4 to my G2/G3/G3 Atom?
If you are not using the Remote Switch outputs on your G2 or G3, this is the the easiest way to connect. Otherwise use the MIDI from your G3 to control PLUS4
