WHY RemoteX4?
When you’re performing, bending down to operate rack or pedalboard controls isn’t practical.
That’s exactly why RemoteX4 exists.

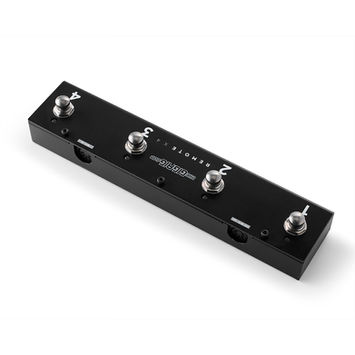

The RemoteX4 Remote Footswitch connects directly to compatible GigRig devices and mirrors their front-panel pushbuttons, giving you full control right under your feet.
Designed specifically for the PLUS4 Remote FX Loops, Wet/Dry Machine Output Selector, and Guitar Tech Input Selector, RemoteX4 makes switching functions effortless in both studio and live environments.
Simply connect the RemoteX4 using the supplied 7-pin DIN cable, and the footswitch instantly takes control of the unit.
No extra power supply is required — RemoteX4 is powered directly from the connected device.
KEY FEATURES
Direct Remote Control
Mirror the pushbuttons of compatible GigRig units directly from the floor.
Single Cable Connection
Uses a 7-pin DIN cable for both power and control.
MIDI Integration
Includes a MIDI IN connection allowing external MIDI controllers to send messages through the RemoteX4.
No External Power Required
Powered directly from the connected unit.
Built For Stage Use
Solid GigRig construction designed for reliable live performance.
Visual Feedback
LED indicators show the current status of the connected unit so you always know exactly where you are.
TECHNICAL
MANUAL
MIDI Integration
RemoteX4 does not require its own power supply.
Power is delivered through the 7-pin DIN cable from the connected GigRig unit.
For reliable operation, ensure the connected device is powered from a stable supply capable of delivering adequate current, such as a GigRig power supply.
Specifications
Connection: 7-pin DIN (power + control)
MIDI: 5-pin DIN MIDI IN
Power: Supplied via connected unit
Compatibility: PLUS4, Wet/Dry Machine, Guitar Tech
Dimensions
Length:23.5cm/ 9.25"
Width:5cm/ 1.96"
Height:4cm/ 1.57"
Weight:0.32kg
FAQs
Do I need a separate power supply?
No. RemoteX4 is powered directly from the connected GigRig unit via the 7-pin DIN cable.
Which products does RemoteX4 work with?
RemoteX4 works with:
-
PLUS4
-
Wet/Dry Machine
-
Guitar Tech
Can I still use MIDI with RemoteX4 connected?
Yes. RemoteX4 includes a MIDI IN port, allowing an external MIDI controller to send messages alongside the footswitch.
Can I still use the front panel controls?
Absolutely. The unit will respond to whichever control command it receives first — RemoteX4, MIDI, or the front panel.
