WHY MORE OR LESS?

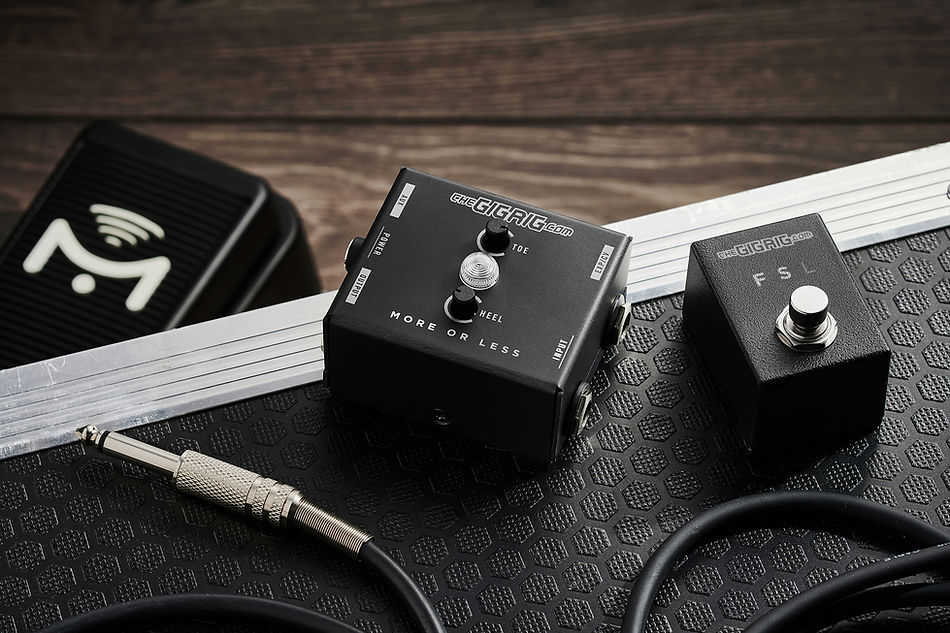

The GigRig More or Less is an innovative active volume module, boost, attenuator, and active splitter. It enables you to use an expression pedal or CV signal to control the volume.
Plug in an expression pedal and set the Heel and Toe values anywhere you want them. With 12 dB of boost available in the toe position, you can use More or Less as a traditional volume pedal, booster, underdriver and easily place this anywhere in your signal chain.
Unplug the expression pedal and The GigRig More or Less becomes a transparent balanced buffer. Plug in The GigRig FSL Footswitch to toggle between the Heel and Toe values turning More or Less into an amazing Boost.
More or Less can be used on a pedalboard, in your rack, off-stage behind your amplifier and can be controlled with either an expression pedal or control voltage.
More Or Less is internally balanced for exceptional audio quality, internally isolated with a +/- 18V giving you huge amounts of headroom so will work perfectly with instrument and line-level signals. It also has internal dip switches enabling you to choose the perfect curve for your expression pedal.
KEY FEATURES
Adjustable Expression Curves
Depending on the expression pedal you use, you may want a different sweep.
The More Or Less provides a selection of expression pedal curves via a pair of switches on the underside of the circuit board. these are accessible by unscrewing the bottom panel of it's enclosure.
LED Indicator
As you sweep through the volume range with your expression pedal the LED indicator will let you know if you are boosting, attenuating or at unity. Red = Boost/ Amber = Unity/Green = Attenuate
Expression Pedal or Control Voltage
More Or Less can be used with an Expression pedal or Control Voltage to control the level remotely. This is a great option to send the More Or Less a sequenced CV for programmed tremolo sounds.
Heel and Toe Values
The Heel and Toe values of More Or Less enable you to set up your expression pedal to work as either a standard volume pedal, a boost, an underdrive, whatever you need.
QUICKTECH
MANUAL
POWER
0.109kg / 0.24lbs (approx)
CURRENT DRAW
150mA at 9VDC
BUFFER INPUT IMPEDANCE
680K Ohm
BUFFER OUTPUT IMPEDANCE
100 Ohm
DIMENSIONS
7.45 cm x 5.73 cm x 3.86 cm / 2.9in x 2.3in x 1.5in
WEIGHT
0.109kg / 3.9oz (approx)
