PLUS2

The GigRig PLUS2

Run out of programable loops?



TheGigRig PLUS2 allows you to expand any pedalboard with 2 extra mono remote switches.

It provides a straightforward and efficient way to add two more remotely switchable effects loops, making it an ideal partner for G2, G3, or Atom pedalboards.

Plus 2 Top Lit.jpg

WHY PLUS2?

Using a simple TRS connector, you can effortlessly toggle between PLUS2’s two effects loops. Connect a TRS cable from your pedalboard’s Remote Switch output to PLUS2’s Remote In, and gain two extra loops programmable within your preset

Leveraging QMX technology, PLUS2 delivers unmatched audio quality with truly lossless effects loops, eliminating the need for buffering. This means you can connect any effect—including vintage fuzzes and treble boosters—without any coloration or loading.

Compact and efficient, PLUS2 is our smallest remote loop switcher yet, freeing up valuable space on your rig for your pedals.

KEY FEATURES

  • Can add 2 more programable effects loop to any rig or pedalboard

  • Switch the loops using either TRS remote switch or MIDI including PC and CC message

  • Passive true bypass loops so you can put anything in them

TECHNICAL
MANUAL

Power: 9V DC 2.1mm centre negative

Current Draw: 60mA

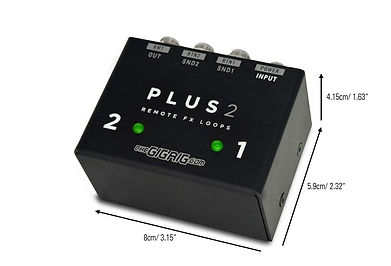

Dimensions:

Length: 8cm/ 3.15"

Width: 5.9cm/ 2.32"

Height: 4.15cm / 1.63"

DOWNLOAD
MANUAL

Weight: 0.171kg/ 0.38lb

Plus 2.jpg

FAQs

How do I power the PLUS2?


The PLUS2 needs at least 60mA @9v’s

Is the PLUS2 mono or stereo?


The PLUS2 is a purely mono switching system

How do I control the PLUS2?


The PLUS2 can be controlled via a TRS cable connected to a dual latching FootSwitch, such as the LATCHMO X 2. Alternatively, it can be controlled via the remote switches on the G2/G3/G3 Atom.


The PLUS2 cannot be controlled via MIDI

Can I re-order the loops on the PLUS2?


No, you cannot re-order the PLUS2's Loops

How do I add the PLUS2 to my G2/G3/G3 Atom?

You can add the PLUS2 to a few different positions in your G2’s/G3’s/G3 Atom’s signal chain:



You could place the PLUS2 before your G2/G3/G3 Atom:
.

Guitar - PLUS2 Input
.

PLUS2 Output - G2/G3/Atom Input





Or



You could place a PLUS2 inside one of the G2/G3/Atom's Loops:
.

Guitar - G2/G3/Atom Input
Loop 3 (E.G.) Send - PLUS2 Input
. PLUS2 Output - Loop 3 Return





Or



After G2/G3/Atom via one of G2/G3/Atom's Output's


Guitar - G2/G3/G3 Atom input


G2/G3/G3 Atom - Output 1 - PLUS2 Input
PLUS2 Output - Amp Input

You’ll then need to connect TRS/Stereo cable between the ‘RMT’ jack socket on the PLUS2 and one of the remote switch sockets on you G2/G3/G3 Atom.


You’ll then program the PLUS2’s Loops using the remote switch buttons/function of the G2/G3/G3 Atom
